Floor Plan

Block 1

Block 2

Block 3

Block 5

Block 6

Block 7

Block 8





Block 5

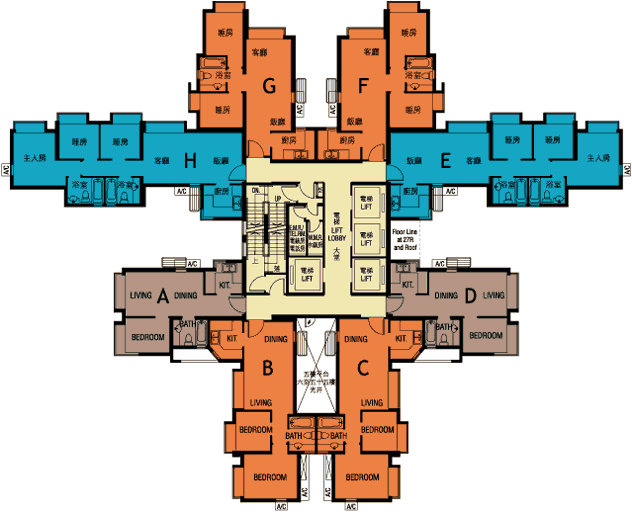

5th-53rd floor typical floor plan


1 Bedroom Unit
2 Bedrooms Unit
3 Bedrooms Unit
(Ensuite)





Flat G
PART PLAN AT 11/F - 27/F
Flat F
PART PLAN AT 11/F - 27/F
Flat A
PART PLAN AT 11/F - 27/F



Flat D
PART PLAN AT 51/F - 55/F
Flat B & C
PART PLAN AT 28/F
Flat B & C
PART PLAN AT 29/F

Note:
  1. There are no 14/F, 24/F, 34/F, 44/F & 54/F for Block 5
  2. The outdoor units of split-type air conditioners are installed on external walls.
  3. Architectural features are on external walls some of the floors.
  4. The internal areas of units on upper floors are in general slightly larger than lower floors due to the reducing thickness of structural walls on those floors.
  5. All dimensions are for reference only.
